Sino-AC Diagnostic Catheter — Judkins Right (JR)
The Sino-AC diagnostic angiographic catheter in a Judkins Right (JR) configuration for selective right coronary angiography, delivering optimal torque control and precise positioning.
Sino-ACOverview

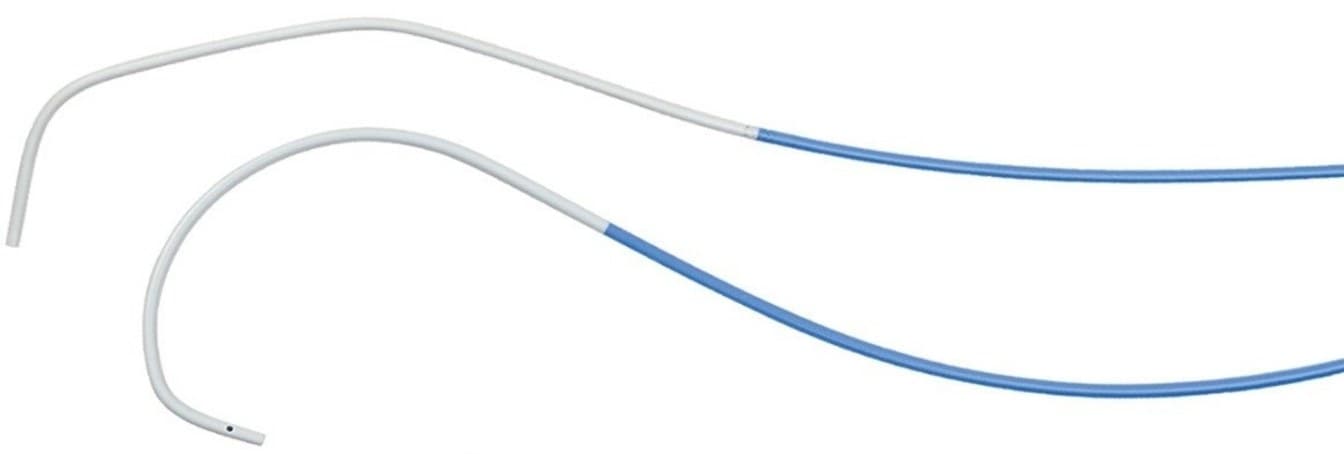

The Sino-AC is a complete series of diagnostic angiographic catheters offering optimal torque control and precise positioning for coronary diagnostics. The Judkins Right (JR) variant is pre-shaped for the right coronary artery. The wall uses a double stainless-steel braid with nylon-Pebax tubing and a polycarbonate wing hub, rated to 1200 psi (81.6 bar). Recommended guidewire 0.035".
Key features
- Pre-shaped Judkins Right (JR) curve
- Double stainless-steel braided wall (nylon Pebax)
- Optimal torque control and precise positioning
- Polycarbonate wing-type hub
- JR curvatures 3.5 / 4.0 / 4.5 / 5.0 / 6.0
Clinical applications
- Selective right coronary angiography
- Diagnostic cardiac catheterisation
- Endovascular surgery / coronary diagnostics
Intended use
The Sino-AC diagnostic catheter is designed for coronary angiography, providing high precision and manoeuvrability. The JR (Judkins Right) configuration is used for selective right-coronary angiography and contrast injection during diagnostic catheterisation.
Specifications
- Type
- Diagnostic angiographic (Judkins Right)
- French sizes
- 4F / 5F / 6F
- Length
- ≤ 125 cm
- Inner diameter
- 1.07 mm (4F) – 1.49 mm (6F)
- Recommended guidewire
- 0.035"
- Max pressure
- 1200 psi (81.6 bar)
Manufactured by TIBTEXNIKA LLC (Uzbekistan). Distributed in Pakistan by SURGIPRO as the authorized representative & importer. Specifications are indicative — always refer to the manufacturer's Instructions for Use (IFU). For use by qualified healthcare professionals only.
Diagram
Click a diagram to open it full size.
Technical parameters
- Catheter length
- Up to 125 cm
- Stiffness
- Performa
- Tip design
- Judkins Right (JR)
- Materials
- Catheter: Nylon-Pebax with double steel braiding · Hub: polycarbonate, "wing" configuration
- Maximum pressure
- 1200 psi (81.6 bar)
- Recommended guidewire
- 0.035"
- Tip curvature
- JR — 3.5, 4.0, 4.5, 5.0, 6.0
Sizes & ordering
Sizes & parameters
| Size | Inner diameter (mm) | Tip length (cm) |
|---|---|---|
| 4 F | 1.07 | 2.3 |
| 5 F | 1.17 / 1.32 | 2.5 |
| 6 F | 1.37 / 1.49 | 2.5 / 1.9 |
Exact dimensional figures, full pressure-compliance charts and order codes are confirmed against the manufacturer's current Instructions for Use (IFU) and catalogue. Request the full datasheet.
Quality & certification
Manufactured under GMP technology by TIBTEXNIKA LLC with internationally certified quality-management systems.
- ISO 13485:2016
- ISO 9001:2015
- Production Licence
- CE Certificate
- Manufacturer
- TIBTEXNIKA LLC, Uzbekistan
- Category
- Catheters
- Product family
- Sino-AC
- Quality system
- GMP · ISO 13485:2016
- Regulatory
- DRAP — Medical Devices Rules, 2017
- Documentation
- IFU, datasheet, Free Sale & registration — on request
- Intended user
- Qualified healthcare professionals only
