Sino-Y Haemostatic Connector

Overview

The Sino-Y is a PTCA guidewire insertion device operable with one hand, combining a haemostatic valve with a built-in valve opener for clean, safe insertion with minimal backflow. Its large inner lumen aids efficient device introduction. Compatible with automatic contrast injectors up to 15 cm³/s and 600 psi, with guiding catheters of 9 Fr or less, and guidewires from 0.014" to 0.038". Available in Push-Pull, Push-Click and Screw types.

Key features

• One-hand operation with built-in valve opener
• Haemostatic valve minimises blood loss / backflow
• Large inner lumen for efficient device introduction
• Injector-compatible: up to 15 cm³/s, max 600 psi

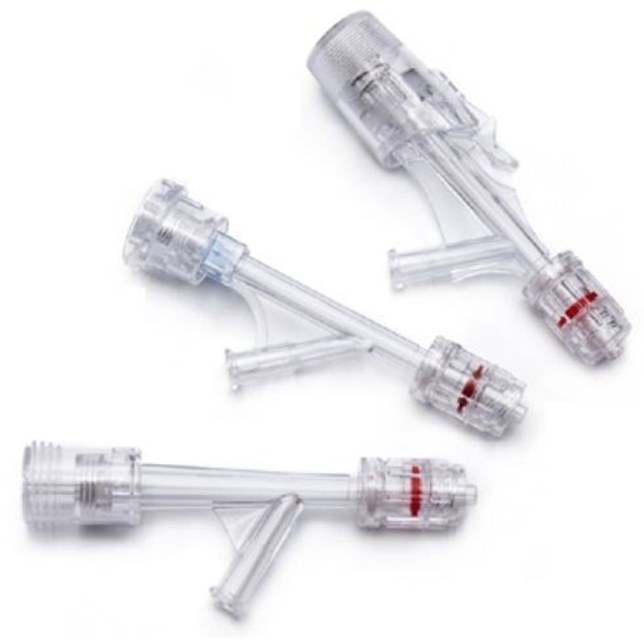

• Types: Push-Pull, Push-Click, Screw

Clinical applications

• Device introduction through guiding catheters
• Maintaining haemostasis during PCI
• Contrast injection and pressure monitoring

Intended use

The Sino-Y PTCA guidewire introducer device is designed for one-handed use. Combining a haemostatic valve with an integrated valve opener, it protects the coated guidewire surface and minimises backflow, reducing blood loss while providing quick, ergonomic access to the vessel.
