SB+ NC High-Pressure PTCA Dilatation Catheter
The SB+ NC non-compliant PTCA balloon catheter (rapid-exchange) for high-pressure dilation of resistant lesions and precise expansion of balloon-expandable stents after placement.
SB+ NCOverview
The SB+ NC is a non-compliant, high-pressure PTCA dilatation catheter that maintains minimal diameter variation under high pressure for maximum precision — ideal for stent post-dilation and complex stenoses requiring high precision and control. It is equipped with radiopaque markers for accurate visualisation, and the proximal adapter carries an inflation port and markings showing the nominal diameter and length. For use by physicians experienced in PTCA and stenting.
Key features
- Non-compliant balloon for high-pressure, controlled expansion
- Maintains minimal diameter variation under high pressure
- Ideal for stent post-dilation and complex stenoses
- Radiopaque markers for accurate visualisation
- Ø 2.00–5.00 mm, length 6–30 mm
Clinical applications
- High-pressure stent post-dilation and optimisation
- Dilation of narrowed coronary arteries during PTCA
- Complex stenoses requiring high precision and control
Intended use
SB+ NC (Non-Compliant) PTCA dilatation catheters are designed for the dilation of narrowed coronary arteries during PTCA, and are used in cases requiring high pressure for precise artery dilation, stent post-dilation and complex, resistant stenoses. Rapid-exchange design; for physicians experienced in PTCA and stenting.
Specifications
- Type
- Non-compliant, high-pressure PTCA dilatation catheter
- Diameters
- 2.00 – 5.00 mm (7 sizes)
- Lengths
- 6 – 30 mm (7 lengths)
- Nominal pressure
- 12 atm
- Rated burst pressure (RBP)
- 20 atm
- Markers
- Radiopaque
Manufactured by TIBTEXNIKA LLC (Uzbekistan). Distributed in Pakistan by SURGIPRO as the authorized representative & importer. Specifications are indicative — always refer to the manufacturer's Instructions for Use (IFU). For use by qualified healthcare professionals only.

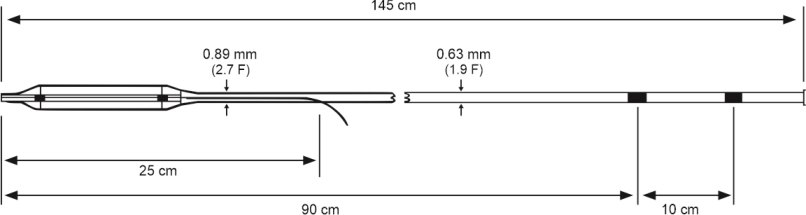

Diagram
Click a diagram to open it full size.
Technical parameters
- Type
- Non-compliant PTCA dilatation catheter — minimal diameter variation under high pressure
- Balloon diameters
- 2.00–5.00 mm (7 sizes)
- Balloon lengths
- 6–30 mm (7 lengths)
- Nominal pressure
- 12 atm (1216 kPa)
- Rated burst pressure
- 20 atm (2027 kPa)
- Guidewire
- 0.014"
- Markers
- Two radiopaque balloon markers for accurate visualisation
Sizes & ordering
Ordering information — SB+ NC
| Catheter Ø (mm) | Catheter length (mm) | ||||||
|---|---|---|---|---|---|---|---|
| 6 | 9 | 12 | 15 | 20 | 25 | 30 | |
| 2.00 | SB-NC-200-06 | SB-NC-200-09 | SB-NC-200-12 | SB-NC-200-15 | SB-NC-200-20 | SB-NC-200-25 | SB-NC-200-30 |
| 2.50 | SB-NC-250-06 | SB-NC-250-09 | SB-NC-250-12 | SB-NC-250-15 | SB-NC-250-20 | SB-NC-250-25 | SB-NC-250-30 |
| 3.00 | SB-NC-300-06 | SB-NC-300-09 | SB-NC-300-12 | SB-NC-300-15 | SB-NC-300-20 | SB-NC-300-25 | SB-NC-300-30 |
| 3.50 | SB-NC-350-06 | SB-NC-350-09 | SB-NC-350-12 | SB-NC-350-15 | SB-NC-350-20 | SB-NC-350-25 | SB-NC-350-30 |
| 4.00 | SB-NC-400-06 | SB-NC-400-09 | SB-NC-400-12 | SB-NC-400-15 | SB-NC-400-20 | SB-NC-400-25 | SB-NC-400-30 |
| 4.50 | SB-NC-450-06 | SB-NC-450-09 | SB-NC-450-12 | SB-NC-450-15 | SB-NC-450-20 | SB-NC-450-25 | SB-NC-450-30 |
| 5.00 | SB-NC-500-06 | SB-NC-500-09 | SB-NC-500-12 | SB-NC-500-15 | SB-NC-500-20 | SB-NC-500-25 | SB-NC-500-30 |
Order-code format: SB-NC-[diameter]-[length] (e.g. SB-NC-300-15 = Ø3.00 mm × 15 mm).
Compliance chart — nominal & burst pressure
| Balloon expansion pressure | Balloon diameter (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| atm | kPa | 2.00 | 2.50 | 2.75 | 3.00 | 3.50 | 4.00 | 4.50 | 5.00 |
| 4 | 405 | 1.87 | 2.36 | 2.57 | 2.71 | 3.30 | 3.71 | 4.24 | 4.75 |
| 6 | 608 | 1.92 | 2.39 | 2.65 | 2.80 | 3.37 | 3.81 | 4.26 | 4.80 |
| 8 | 811 | 1.96 | 2.44 | 2.69 | 2.88 | 3.42 | 3.88 | 4.27 | 4.85 |
| 10 | 1013 | 1.99 | 2.47 | 2.73 | 2.95 | 3.47 | 3.95 | 4.34 | 4.90 |
| 12 (N) | 1216 | 2.02 | 2.50 | 2.76 | 3.01 | 3.50 | 4.00 | 4.44 | 4.98 |
| 14 | 1419 | 2.05 | 2.54 | 2.80 | 3.05 | 3.53 | 4.05 | 4.48 | 5.01 |
| 16 | 1621 | 2.08 | 2.57 | 2.83 | 3.09 | 3.57 | 4.09 | 4.55 | 5.10 |
| 18 | 1824 | 2.11 | 2.61 | 2.88 | 3.13 | 3.61 | 4.13 | 4.61 | 5.18 |
| 20 (RBP) | 2027 | 2.14 | 2.63 | 2.93 | 3.17 | 3.65 | 4.17 | 4.68 | 5.26 |
| 22 | 2229 | 2.17 | 2.67 | 2.98 | 3.21 | 3.68 | 4.22 | 4.76 | 5.30 |
| 24 | 2432 | 2.20 | 2.71 | 3.03 | 3.25 | 3.72 | 4.26 | 4.84 | 5.36 |
Columns = nominal balloon Ø (mm); cells = achieved Ø at the given pressure. (N) Nominal pressure 12 atm. (RBP) Rated burst pressure 20 atm — do not exceed. Use a pressure-monitoring device when inflating.
Exact dimensional figures, full pressure-compliance charts and order codes are confirmed against the manufacturer's current Instructions for Use (IFU) and catalogue. Request the full datasheet.
Quality & certification
Manufactured under GMP technology by TIBTEXNIKA LLC with internationally certified quality-management systems.
- ISO 13485:2016
- ISO 9001:2015
- Production Licence
- CE Certificate
- Manufacturer
- TIBTEXNIKA LLC, Uzbekistan
- Category
- PTCA Balloons
- Product family
- SB+ NC
- Quality system
- GMP · ISO 13485:2016
- Regulatory
- DRAP — Medical Devices Rules, 2017
- Documentation
- IFU, datasheet, Free Sale & registration — on request
- Intended user
- Qualified healthcare professionals only
